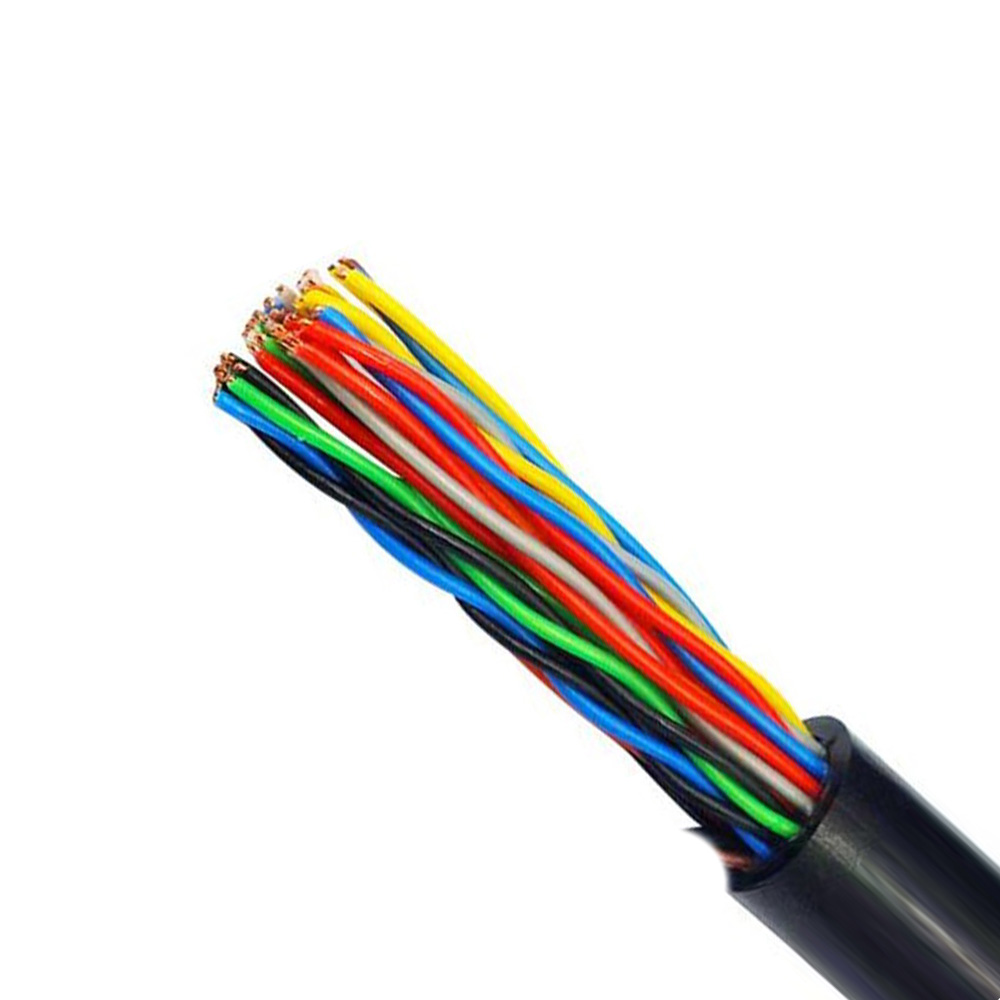

TELEPHONE CABLE CAT3 UNSHIELD
Configuration:
| Conductor: |
0.50±0.01mm(24AWG) Bare copper |
| Insulation: |
0.90±0.03mm HDPE/PVC |
| Cores/Pairs: |
2/1 up to 100/50 |
| Drain Wire: |
0.4mm (26AWG) Tinned Copper |
| Sheath: |
According to pairs PVC, PE, LSZH |
| Options: |
Jelly Compound, Jacket: UV, FR, RoHS complied. |
Mechanical Properties:
| Elongation: |
Min. 300% |
| Temperature Range: |
-20 up to +75° C |
| Tensile Strength: |
Min 1.68kg/mm² |
Electrical Properties:
| Conductor Resistance: |
Max. 9.38 ohm/100m |
| Resistance Unbalance: |
Max. 2% |
| Insulation Resistance: |
150 ohm/KM |
| Mutual Capacitance: |
Max. 5600pF/100m |
| Capacitance Unbalance: |
Max. 330pF/100m |
| Impedance: |
100+/-15 ohm |
| Spark Test: |
2000V |
| Velocity of Propagation: |
0.67 |
Technical Performance:
|
Attenuation |
RL |
Next |
PS Next |
| (Mhz) |
(dB/100M) |
(dB) |
(dB) |
(dB/100m) |
| 1MHz |
2.6 |
12 |
41.3 |
41.3 |
| 4MHz |
5.6 |
12 |
32.3 |
32.3 |
| 8MHz |
8.5 |
12 |
27.8 |
27.8 |
| 10MHz |
9.7 |
12 |
26.3 |
26.3 |
| 16MHz |
13.1 |
12 |
23.3 |
23.3 |
