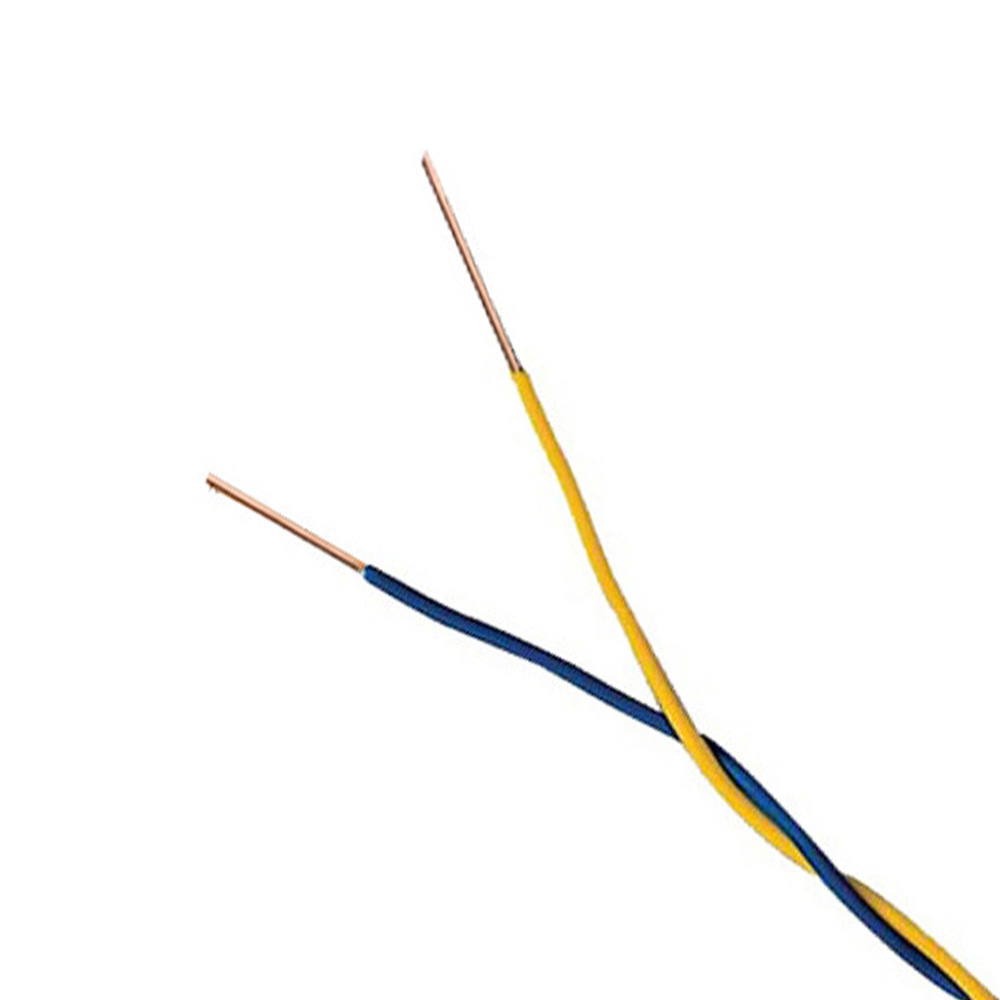

Such cables are used for the connections of data communication systems. These cables which are designed for transmitting digital and analog voice, data and video signals; also support: ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000 Base-T, Token Ring 4/16 Mbit/s, TP-PMD/TPDDI.
125 Mbit/s, ATM 155 Mbit/s systems.
Configuration:
| Conductor | Copper wire: | 0.50±0.01mm | ||
| Elongation at break: | ≥ 22%. Sample under test 200 mm | |||
| Breaking load: | F > 216 Mpa | |||
| Dielectric | PVC: | 1.02±0.1 | ||
| Color: | Red/White (other color is available) | |||
| Strand step: | 45mm – 55mm | |||
| Strand direction: | Right hand | |||
Mechanical Properties:
| D.C. Electric Resistance @ 20℃: | ≤ 90 Ω/km | |||
| Resistance Unbalance: | ≤ 2% | |||
| Insulation Resistance @ 20℃: | ≥500 MΩ×km after applying 500 V DC during 60 seconds | |||
| between every conductor and the metallic mandrel with | ||||
| diameter 100 mm | ||||
| MAX. 90 Ohm/km – 20 ºC | ||||
Insertion Losses:
| 64 kHz | 7.4dB/km | |||
| 160 kHz | 9.8 dB/km | |||
| 300 kHz | 13.2 dB/km | |||
| 600 kHz | 18.5 dB/km | |||
| 1024 kHz | 24.5 dB/km | |||
CABLE ENVIRONMENTAL CHARACTERISTICS:
| Work Temperature: | -20℃+75℃ | |||
| Cable guarantee: | 20 years | |||
DELIVERY FORM:
| 800m/plastic reel (Reel color: black), label on each reels | ||||
| 4 reels in one box | ||||
| Pallet (on request): Euro pallet |
